Features:

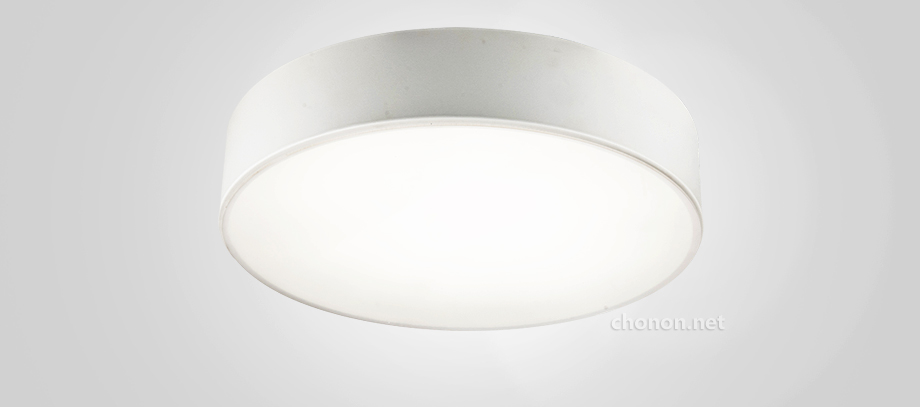

●Surrounded by a cylindrical metal structure, with durable white/silver/black powder coat finish
●Pleasing homogeneous visual appearance thanks to the large LED board
●Choice of different sizes: ? 360mm, ? 480mm, ? 600mm
●Come with a PMMA diffuser, offering a comfortable diffused light
●LED options: Samsung or Epistar
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available
●Good color rendering of CRI>80
●Superior thermal performance of LED board, leading to a longer life
Mounting:surface mounted or suspended
Key Applications:
Office buildings, schools, universities, libraries, hallways, etc.
Specification:
●Surrounded by a cylindrical metal structure, with durable white/silver/black powder coat finish
●Pleasing homogeneous visual appearance thanks to the large LED board
●Choice of different sizes: ? 360mm, ? 480mm, ? 600mm
●Come with a PMMA diffuser, offering a comfortable diffused light
●LED options: Samsung or Epistar
●Driver options: non-dimmable, and 1-10V, DALI, DSI dimmable available
●Good color rendering of CRI>80
●Superior thermal performance of LED board, leading to a longer life
Mounting:surface mounted or suspended
Key Applications:
Office buildings, schools, universities, libraries, hallways, etc.
|
|
|
|
|
 |
 |
 |
 |
Specification:
|
Product Code |
Fixture Size (mm) |
Wattage |
Lumen @4000K |
CCT (K) |
CRI |
Power Factor |
Carton Size (cm) |
Qty/ctn (pcs) |
|
MZJ-LED-324S |
? 360mmx90 |
24w |
2000lm |
3000-6500K |
>80 |
>0.9 |
35x35x18.5 |
2pcs |
|
MZJ-LED-430S |
? 480mmx90 |
30w |
2800lm |
3000-6500K |
>80 |
>0.9 |
49x49x18.5 |
2pcs |
|
MZJ-LED-642S |
? 600mmx90 |
42w |
4000lm |
3000-6500K |
>80 |
>0.9 |
61x61x18.5 |
2pcs |
Other lengths, wattages and lumens are available on request.
